• OCPP 1.6 Full Functionality
• Default CE Certification
• Supports Smart Charging
• Specialized For EV Charger Exports

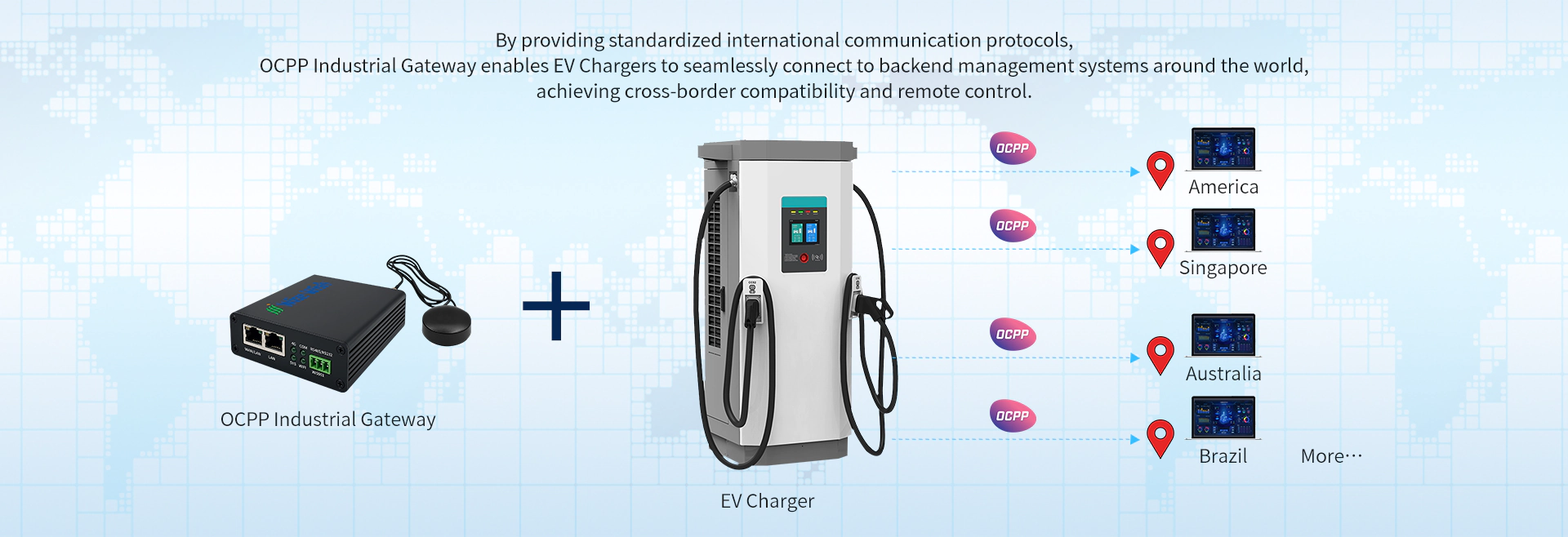

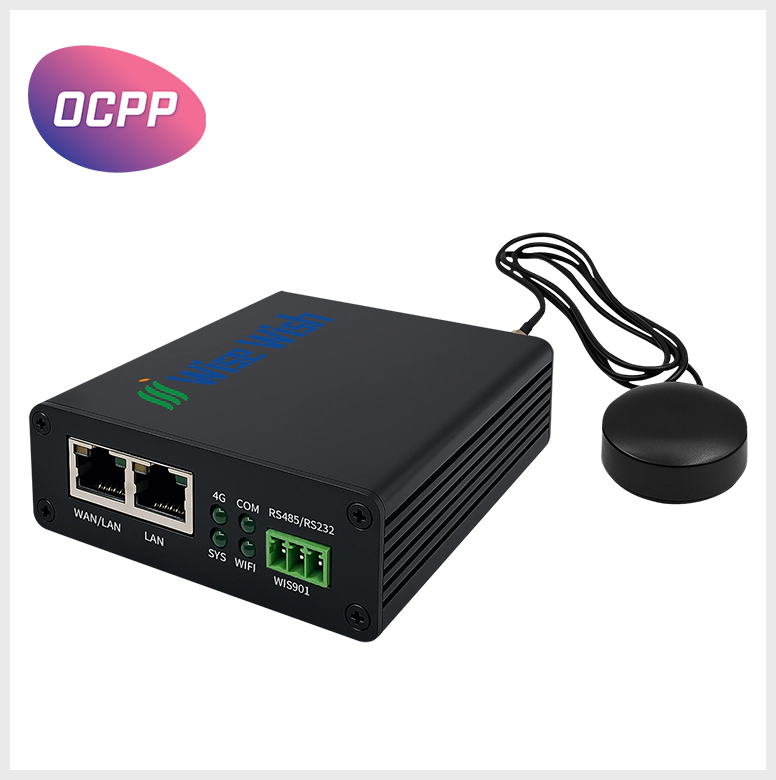

This OCPP 4G gateway is designed specifically for EV charger, enabling efficient connection and data exchange between charging piles and the OCPP backend management system. Supporting the full functionality of the OCPP 1.6J protocol, it converts existing charging and swapping protocols to OCPP without requiring modifications to existing charging pile hardware. This device supports charging pile manufacturers in achieving various certifications, including OCA and TUV.
How does it empower your business?
Supported OCPP versions
| OCPP protocol revision 1.6 – OCPP via Json over WebSocket |
| OCPP protocol revision 2.0.1 |
Supported OCPP profiles
| Profile name | Description |
| Core | Basic functions match OCPP 1.5 and support firmware updates, local authorization management, and reservations |
| Local Auth List Management | Features to manage the local authorization list in charge point |
| Reservation | Support for reservation of a charge point |
| Smart Charging | Support for basic Smart Charging functionality, for instance, using control pilot |
| Remote Trigger | Support for remote triggering of charge point initiated messages |
Supported OCPP messages
| Message | Profile | Supported | Initiated by… |
| Authorize(*) | Core | Yes | Client (Charge Point) |
| BootNotification | Core | Yes | Client (Charge Point) |
| ChangeAvailability | Core | Yes | Client (Charge Point) |
| ChangeConfiguration | Core | Yes | Server (Central System) |
| ClearCache | Core | Yes | Server (Central System) |
| DataTransfer | Core | Yes | Client (Charge Point)/ Server (Central System) |
| GetConfiguration | Core | Yes | Client (Charge Point) |
| Heartbeat | Core | Yes | Client (Charge Point) |
| MeterValues | Core | Yes | Server (Central System) |
| RemoteStartTransaction | Core | Yes | Server (Central System) |
| RemoteStopTransaction | Core | Yes | Server (Central System) |
| Reset | Core | Yes | Server (Central System) |
| StartTransaction(*) | Core | Yes | Client (Charge Point) |
| StatusNotification | Core | Yes | Client (Charge Point) |
| StopTransaction(*) | Core | Yes | Client (Charge Point) |
| UnlockConnector | Core | Yes | Server (Central System) |
| GetDiagnostics | Firmware Management | Yes | Server (Central System) |
| DiagnosticsStatusNotification | Firmware Management | Yes | Client (Charge Point) |
| FirmwareStatusNotification | Firmware Management | Yes | Client (Charge Point) |
| UpdateFirmware | Firmware Management | Yes | Server (Central System) |
| GetLocalListVersion | Local Auth List Management | Yes | Server (Central System) |
| SendLocalList | Local Auth List Management | Yes | Server (Central System) |
| CancelReservation | Reservation | Yes | Server (Central System) |
| ReserveNow | Reservation | Yes | Server (Central System) |
| ClearChargingProfile | Smart Charging | Yes | Server (Central System) |
| GetCompositeSchedule | Smart Charging | Yes | Server (Central System) |
| SetChargingProfile | Smart Charging | Yes | Server (Central System) |
| TriggerMessage(*) | Remote Trigger | Yes | Server (Central System) |
Supported OCPP Platforms (Customization Available)
